High Efficiency - Class 5 NARA PLUS Pellet Boiler
Welcome to the new evolution of Compact Pellet Boilers. Pellet Boiler Nara Plus is a high efficiency boiler with a performance above 90% of class 5, according to EN303-5. Constructed of high quality steel sheet and with powers 23 and 30kw. Allows easy management of the heating system, in addition to economical facilitates the management of the heating system. It includes Automatic Turbulator Cleaner, Automatic Burner Cleaning and high ash storage time, thus reducing the need to clean the ashes. Installation.
Recommendations: anti-condensation valve and AISI 316L Stainless Steel Chimney.
| Código | Modelo | Preço (s/IVA) | Disponibilidade | Comprar |
|---|---|---|---|---|
| 0103-0426 | Pellets Boiler Nara Plus 24 - Green Edition (High efficiency) | Entrar no My Zantia | ||
| 0103-0427 | Pellets Boiler Nara Plus 34 - Green Edition (High efficiency) | Entrar no My Zantia |
Principais Características
• High efficiency electronic circulator;
• Ceramic resistance that allows faster auto-ignition;
• Body in steel plate with vertical smoke passages;
• Automatic burner cleaning
• Automatic cleaning of turbulators;
• High ash accumulation capacity;
• Automatic fan modulation
• Display with digital control
• Possibility of connecting an external chronothermostat;
• Possibility of installation outside a technical zone. It has probe of ambient temperature;
• Includes hydraulic group: circulating pump, safety valve, expansion vessel and trap;
• (EN 303-5 "Class 5")
Especificações Técnicas
| Technical data | Units | Nara Plus 24 | Nara Plus 34 |
|---|---|---|---|
| Minimum / Maximum Useful Power | kW | 6,67 / 24,29 | 6,67 / 32,4 |
| Useful power water minimum / maximum | kW | 6,12 / 23,27 | 6,12 / 31 |
| Boiler Class | 5 | 5 | |
| Performance Minimum / Maximum | % | 91,79 / 95,80 | 91,79 / 95,69 |
| Smoke Temperature - Minimum / Maximum Power | ºC | 57 / 87 | 57 / 98 |
| CO emissions (13% Oxygen to Min / Max Power) | ppm | 102 / 237 | 153 / 237 |
| Drawing chimney - Nominal Power | Pa | 12 | 15 |
| Drawing chimney - Power Reduced | Pa | 10 | 10 |
| Power Supply | V/Hz | 230/50 | 230/50 |
| Electrical Consumption | W | 230 | 230 |
| Maximum Operating Pressure | bar | 1,5 | 1,5 |
| Water content in the boiler | lts | 36 | 36 |
| Pellet Tank Capacity | kg | 70 | 70 |
| Hourly Pellet Consumption (Min - Max) | kg/h | 1,37 / 4,99 | 1,37 / 6,66 |
| Autonomy (maximum - minimum power) | Horas | 14 - 51 | 10,5 - 51 |
| Smoke Exhaust (Evacuation) | mm | 100 | 100 |
| Air Inlet (Aspiration) | mm | 80 | 80 |
| Expansion Vessel | lts | 8 | 8 |
| Fuel (Pellet) | mm | 6 | 6 |

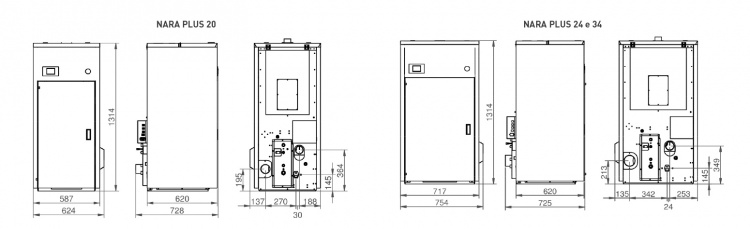

| Dimensions | mm | 720x730x1320 | 720x730x1320 |
| Net weight | kg | 300 | 300 |
| Heated Volume | m³ | 170-570 | 240-800 |
