Radiadores FLAT Panel Radiator
Convector radiator manufactured in steel plate, with smooth panel and painted in white (RAL9016). Supplied with bracket kit for wall fixation and with assembly kit (cap 1/2", manual air valve of 1/2", screws and bushings).
- 4 hydraulic connections of 1/2";
- Maximum temperature: 90 Degree C
- Maximum pressure: 10bar
Ficha técnica do produto
| Código | Modelo | Preço (s/IVA) | Disponibilidade | Comprar |
|---|---|---|---|---|
| 0502-0206 | FLAT Panel Radiator 600x600 (Steel Plate) | Entrar no My Zantia | ||
| 0502-0207 | FLAT Panel Radiator 600x800 (Steel Plate) | Entrar no My Zantia | ||
| 0502-0208 | FLAT Panel Radiator 600x1000 (Steel Plate) | Entrar no My Zantia | ||
| 0502-0209 | FLAT Panel Radiator 600x1200 (Steel Plate) | Entrar no My Zantia | ||
| 0502-0210 | FLAT Panel Radiator 600x1500 (Steel Plate) | Entrar no My Zantia |
Especificações Técnicas

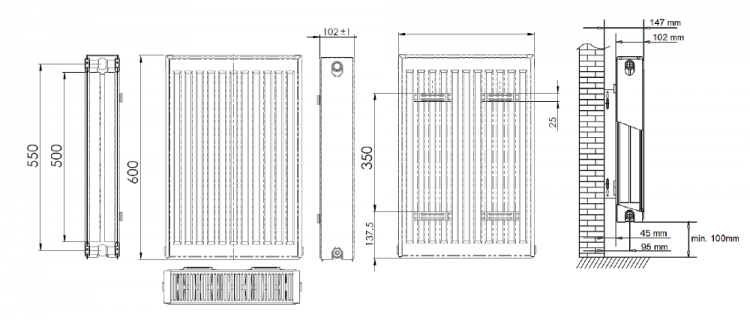

| Technical data | 600x600 | 600x800 | 600x1000 | 600x1200 | 600x1500 |
|---|---|---|---|---|---|
| Height (mm) | 600 | 600 | 600 | 600 | 600 |
| Depth (mm) | 102 | 102 | 102 | 102 | 102 |
| Length (mm) | 600 | 800 | 1000 | 1200 | 1500 |
| Vertical distance between mouths (mm) | 550 | 550 | 550 | 550 | 550 |
| Water content (lts) | 3,6 | 4,8 | 6 | 9,6 | 9 |
| Weight (kg) | 18,6 | 24,5 | 31,1 | 37,3 | 46,6 |
| Power (W) EN442 - ∆T=50 degrees C | 926 | 1235 | 1544 | 1853 | 2316 |
